Point Source Examples

Scott Prahl

Oct 2023

We use Green’s function solutions for heat transfer due to a point source in an infinite medium, encapsulated within the Point class. The solutions are based on the mathematical formulations provided in Carslaw and Jaeger’s work.

The Point class represents a point heat source located at a specified position (xp, yp, zp) in the medium. It provides methods to calculate the temperature rise at any given location (x, y, z) at a specified time t due to different types of heat source behavior.

Three types of point source behaviors are supported:

• instantaneous(): Represents a single, instantaneous release of heat from (xp,yp,zp) at time tp.

• continuous(): Represents a continuous release of heat from (xp,yp,zp) starting at t=0

• pulsed(): Represents a pulsed release of heat from (xp,yp,zp) for t=0 to t_pulse.

Each of these line sources can be analyzed under different boundary conditions at z=0:

• 'infinite': No boundary (infinite medium).

• 'adiabatic': No heat flow across the boundary.

• 'zero': Boundary is fixed at T=0.

The module supports various boundary conditions such as infinite, adiabatic, or zero boundary, and allows for specifying thermal properties like diffusivity and volumetric heat capacity of the medium.

import grheat
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
from IPython.display import HTML

%config InlineBackend.figure_format = 'retina'
%matplotlib inline

Instantaneous 1J point source located a depth of 1mm

No boundary (infinite medium)

xp, yp, zp = 0, 0, 0.001 # meters
tp = 0                   # seconds impulse time
t = np.linspace(0,3,100) # seconds

point = grheat.Point(xp, yp, zp, tp)

T = point.instantaneous(0,0,0,t)
plt.plot(t,T, label='at (0,0,0) mm')

T = point.instantaneous(0,0.001,0,t)
plt.plot(t,T, label='at (0,1,0) mm')

plt.legend()
plt.xlabel("time (s)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1J point source located at (0,0,1) mm")
plt.show()

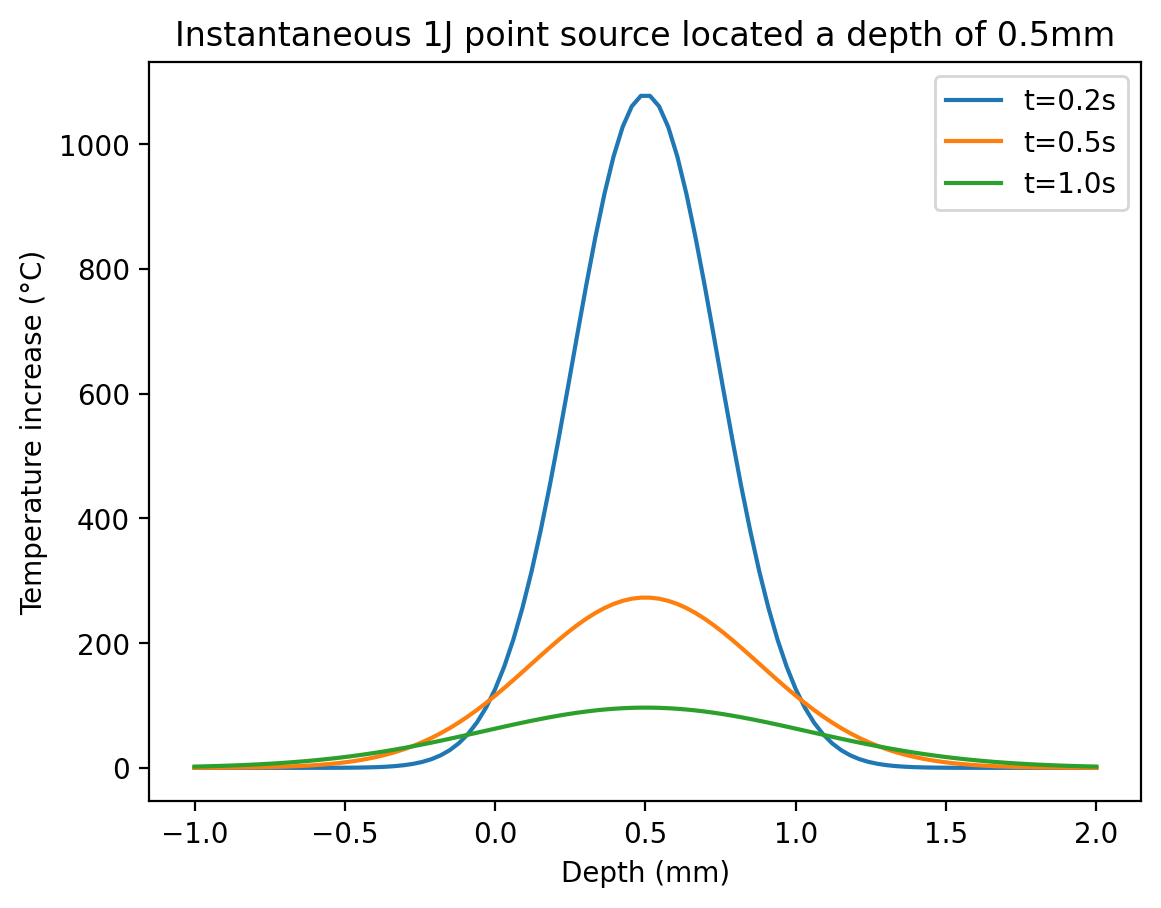

Continuous flow across boundary

tp = 0                       # seconds impulse time
t = np.linspace(0,3,100)     # seconds
xp, yp, zp = 0, 0, 0.0005     # meters
z = np.linspace(-0.001,0.002,100) # meters

point = grheat.Point(xp, yp, zp, tp)

for t in [0.2, 0.5, 1.0]:
    T = point.instantaneous(0,0,z,t)
    plt.plot(z*1000,T, label='t=%.1fs'%t)

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1J point source located a depth of %.1fmm"%(zp*1000))
plt.legend()
plt.show()

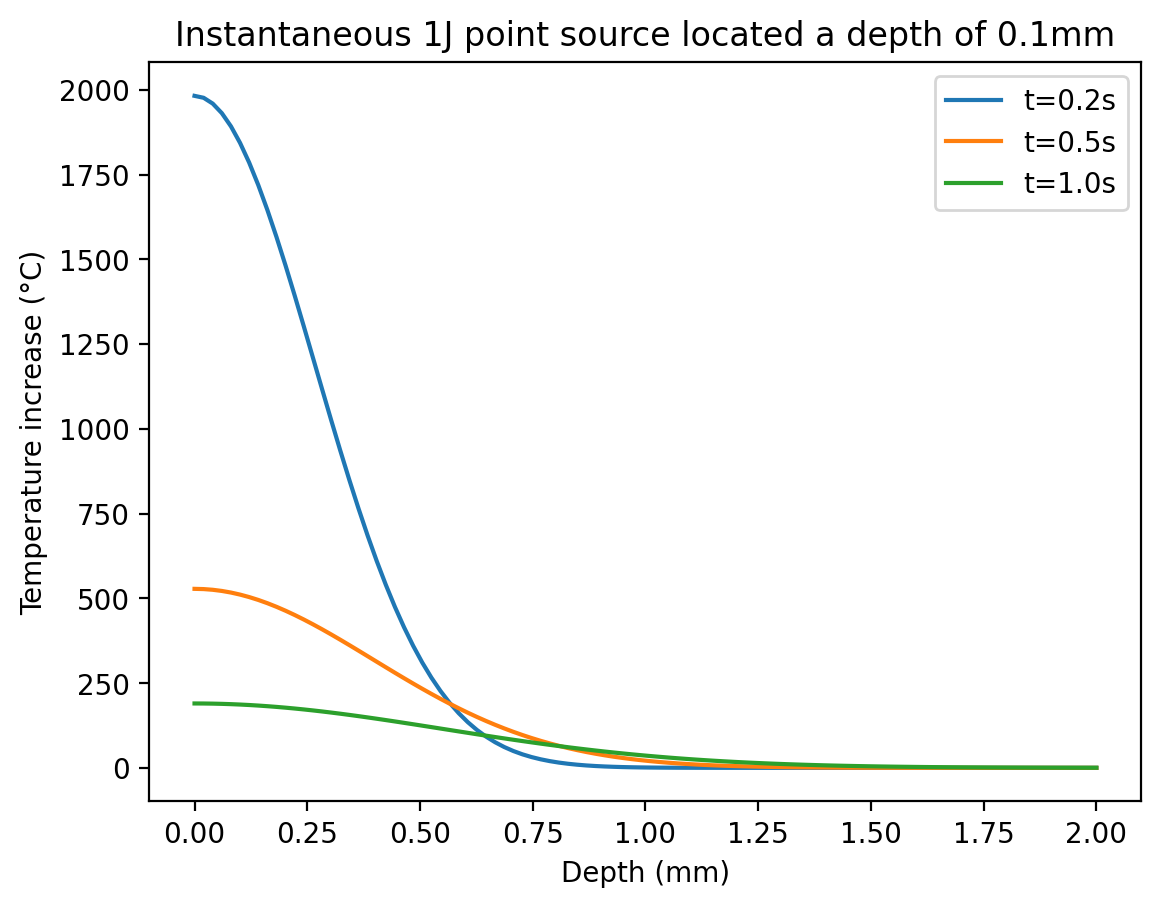

Showing adiabatic boundary condition

tp = 0                            # seconds impulse time
t = np.linspace(0,3,100)          # seconds
xp, yp, zp = 0, 0, 0.0001         # meters
z = np.linspace(0,0.002,100)      # meters

point = grheat.Point(xp, yp, zp, tp, boundary='adiabatic')

for t in [0.2, 0.5, 1.0]:
    T = point.instantaneous(0,0,z,t)
    plt.plot(z*1000,T, label='t=%.1fs'%t)

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1J point source located a depth of %.1fmm"%(zp*1000))
plt.legend()
plt.show()

Showing zero boundary condition

tp = 0                       # seconds impulse time
t = np.linspace(0,3,100)     # seconds
xp, yp, zp = 0, 0, 0.0001     # meters
z = np.linspace(0,0.002,100) # meters

point = grheat.Point(xp, yp, zp, tp, boundary='zero')

for t in [0.2, 0.5, 1.0]:
    T = point.instantaneous(0,0,z,t)
    plt.plot(z*1000,T, label='t=%.1fs'%t)

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1J point source located a depth of %.1fmm"%(zp*1000))
plt.legend()
plt.show()

tp = 0                          # seconds
t = np.linspace(0.000, 0.2, 21) # seconds
xp, yp, zp = 0, 0.0001, 0.001   # m
x = 0                           # m
y = 0                           # m
z = np.linspace(0,0.002,101)    # m
zz = 1000 * z                   # mm

point = grheat.Point(xp, yp, zp, tp, boundary='zero')
T_data = point.instantaneous(x,y,z,z[50])

# Create figure and axis
fig, ax = plt.subplots()

# need a line object from the graph that will be continually updated
ln, = plt.plot(zz, T_data)

def init():
    plt.xlabel("Depth (mm)")
    plt.ylabel('Temperature increase (°C)')
    plt.title("Instantaneous 1J point source located a depth of %.1fmm"%(zp*1000))
    plt.xlim(zz[0],zz[-1])
    return ln,

def update(t):
    T_data = point.instantaneous(0,0,z,t)
    ln.set_ydata(T_data)

    # Autoscale the vertical axis
    ax.relim()
    ax.autoscale_view()
    return ln,

# Create animation
ani = FuncAnimation(fig, update, frames=t, init_func=init,
                    blit=True, interval=100, repeat=False)

# Close the figure window to prevent the static plot from being displayed
plt.close(fig)

# Display the animation in the Jupyter Notebook
HTML(ani.to_jshtml())

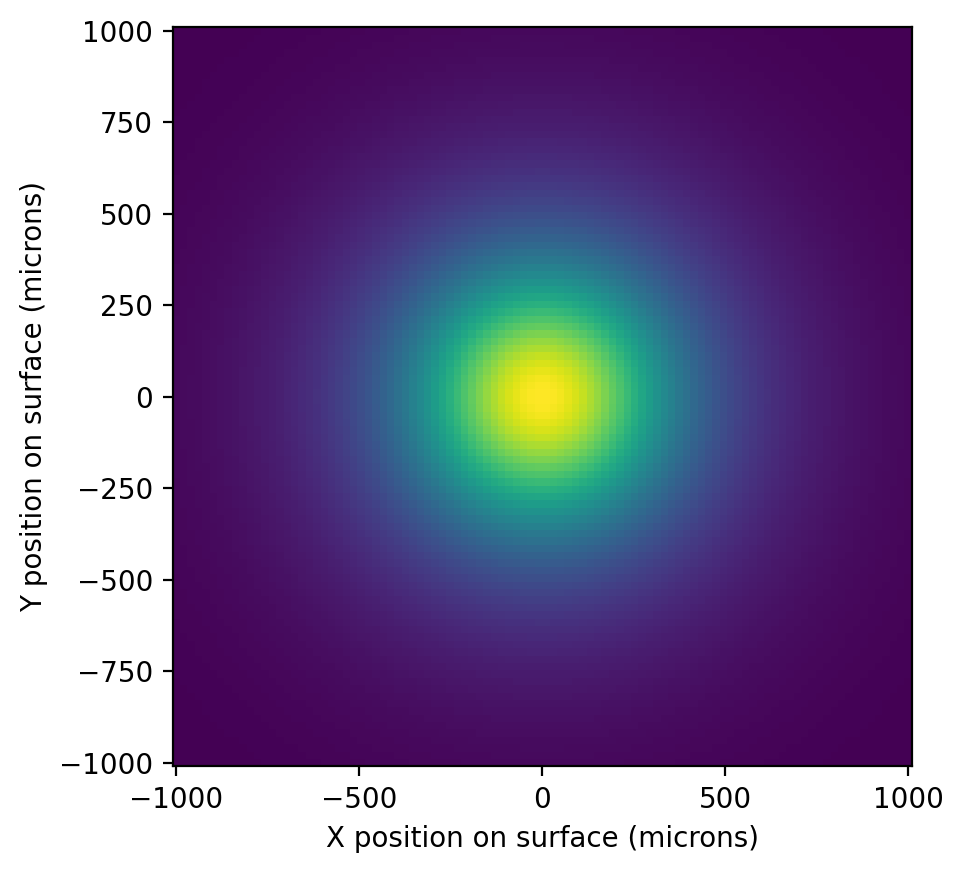

Once Loop Reflect

tp = 0                       # seconds impulse time
t = 1.1                      # seconds
t_pulse = 1                  # seconds

xp, yp, zp = 0, 0, 0.0001           # meters

arr = np.linspace(-1,1,100) * 0.001 # meters
X, Y = np.meshgrid(arr, arr)        # meters
z = np.linspace(0,0.002,100)        # meters

point = grheat.Point(xp, yp, zp, tp, boundary='adiabatic')

T = point.pulsed(X, Y, 0, t, t_pulse)
plt.pcolormesh(X*1e6, Y*1e6, T)
plt.xlabel("X position on surface (microns)")
plt.ylabel("Y position on surface (microns)")
plt.gca().set_aspect(1)
plt.show()

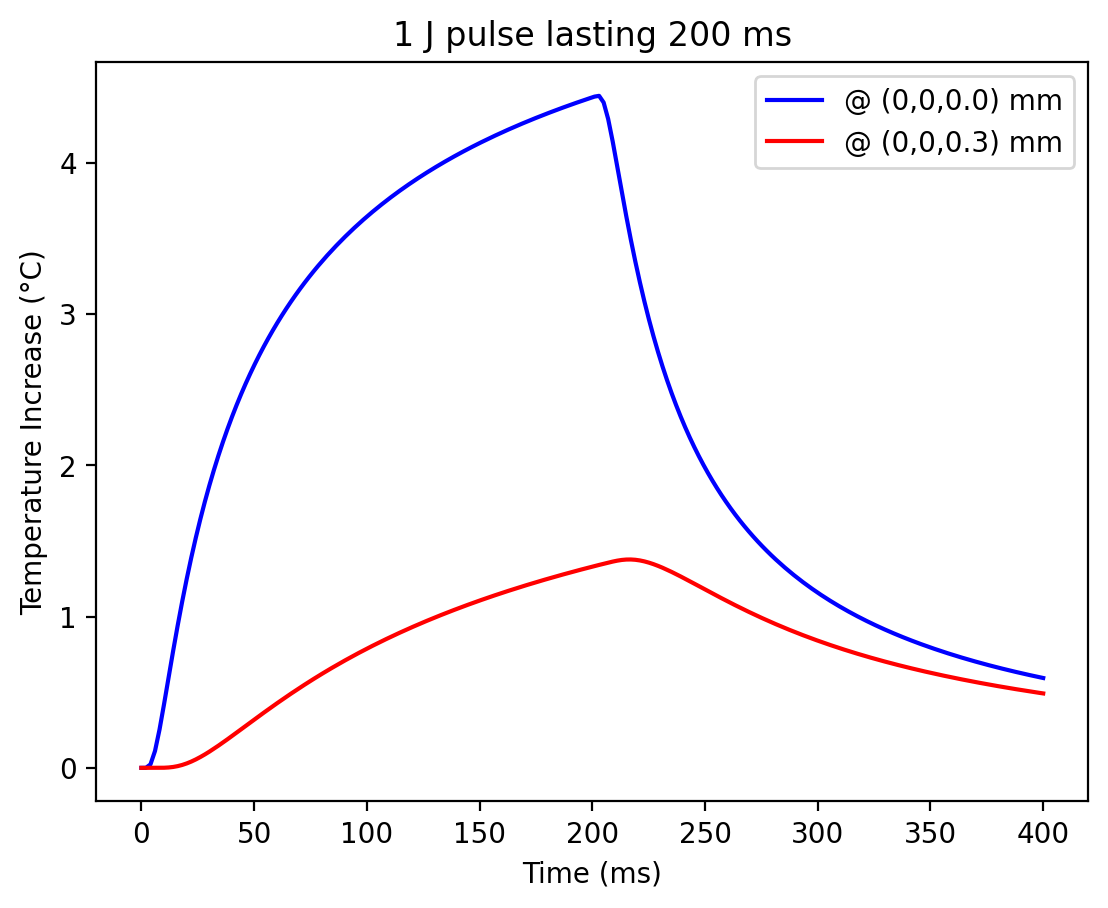

xp, yp, zp = 0, 0, 0.0001         # m
point = grheat.Point(xp,yp,zp)

t_pulse = 0.200                        # seconds
t = np.linspace(0, 2*t_pulse, 200)     # seconds

x, y, z = 0, 0, 0                      # meters
T = point.pulsed(x, y, z, t, t_pulse)  # 1 J
T *= 1e-3                              # 1 mJ

plt.plot(t * 1000, T, color='blue', label="@ (0,0,%.1f) mm"%(1000*z))

x, y, z = 0, 0, 0.0003                 # meters
T = point.pulsed(x, y, z, t, t_pulse)  # 1 J
T *= 1e-3                              # 1 mJ

plt.plot(t * 1000, T, color='red', label="@ (0,0,%.1f) mm"%(1000*z))

plt.xlabel("Time (ms)")
plt.ylabel("Temperature Increase (°C)")
plt.title("1 J pulse lasting %.0f ms" % (t_pulse * 1000))
plt.legend()
plt.show()
