Absorber Examples

Scott Prahl

Oct 2023

We use Green’s function solutions for heat transfer due to an uniform illumination of a semi-infinte medium, encapsulated within the Absorber class. The solutions are based on the mathematical formulations provided in Carslaw and Jaeger’s work.

The Absorber class represents an exponentially attenuating heat source that is proportional to mu_a * exp(-mu_a z). The surface is defined by z=0. The class provides methods to calculate the temperature rise at any depth z and at a specified time t, due to different types surface illumination

Three types of line source behaviors are supported:

• instantaneous(): Represents an instantaneous radiant exposure at time tp.

• continuous(): Represents an irradiance starting at t=0.

• pulsed(): Represents a radiant exposure lasting from t=0 to t_pulse.

Each of these line sources can be analyzed under different boundary conditions at z=0:

• 'infinite': No boundary (infinite medium).

• 'adiabatic': No heat flow across the boundary.

• 'zero': Boundary is fixed at T=0.

import grheat
import numpy as np
import matplotlib.pyplot as plt

from scipy.special import erf, erfc, erfcx
joules_per_calorie = 4.184

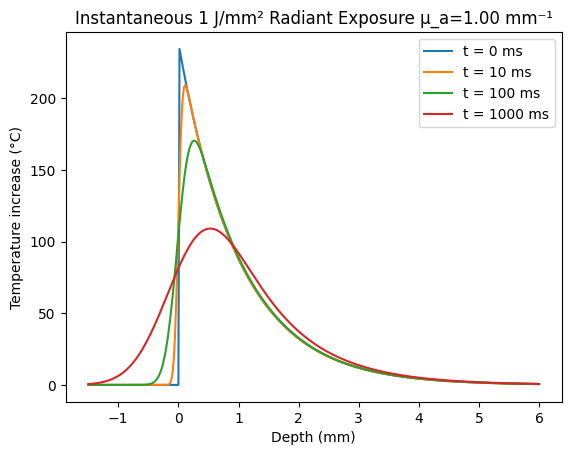

Instantaneous heating

Infinite medium, exponential heating z>0 at t=0

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)
z = np.linspace(-0.0015,0.006,401)

T = medium.instantaneous(z,0) * 1e6
plt.plot(z*1000, T, label='t = 0 ms')

T = medium.instantaneous(z,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.instantaneous(z,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.instantaneous(z,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1 J/mm² Radiant Exposure µ_a=%.2f mm⁻¹" % (mu_a/1000))
plt.legend()
plt.show()

Checking total deposited energy

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)
z = np.linspace(-0.0015,0.006,401)
dz = z[1]-z[0]

print('No surface boundary condition, instantaneous pulse')
print('time   total')
t = 0
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.01
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.1
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 1
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

No surface boundary condition, instantaneous pulse
time   total
0.0000 0.9882
0.0100 0.9975
0.1000 0.9975
1.0000 0.9968

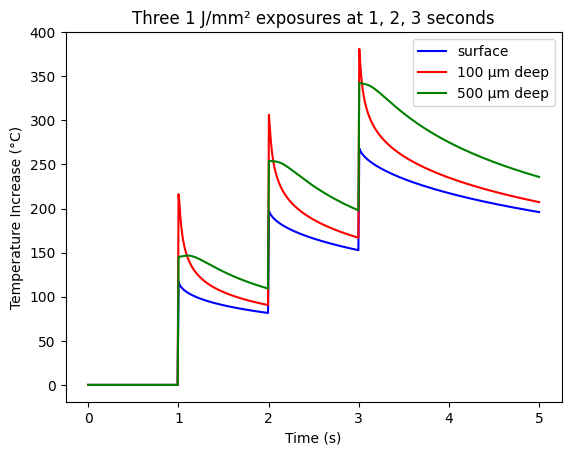

Multiple pulses

mua = 1 * 1000               # 1/m  (1mm⁻¹ = 1000m⁻¹)
tp = np.array([1,2,3], dtype=float)

medium = grheat.Absorber(mua, tp=tp)

t = np.linspace(0, 5, 500)   # seconds

z = 0                        # meters
T = medium.instantaneous(z, t) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='blue', label="surface")

z = 0.0001
T = medium.instantaneous(z, t) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='red', label="100 µm deep")

z = 0.0005
T = medium.instantaneous(z, t) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='green', label="500 µm deep")

plt.xlabel("Time (s)")
plt.ylabel("Temperature Increase (°C)")
plt.title("Three 1 J/mm² exposures at 1, 2, 3 seconds")
plt.legend()
plt.show()

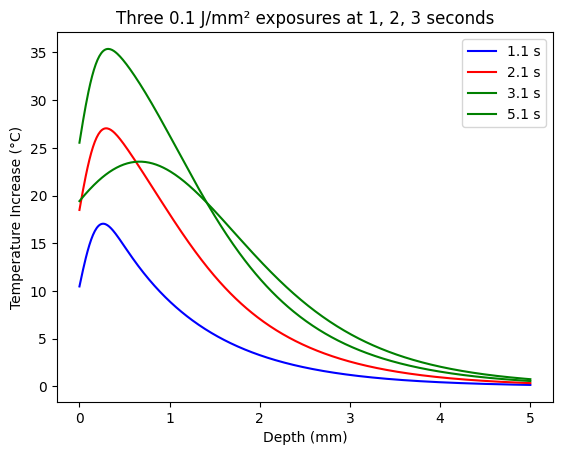

mua = 1 * 1000               # 1/m  (1mm⁻¹ = 1000m⁻¹)
tp = np.array([1,2,3], dtype=float)

medium = grheat.Absorber(mua, tp=tp)

z = np.linspace(0, 0.005, 500)   # m

t = 1.1                       # s
T = medium.instantaneous(z, t) * 1e5  # 1 J/mm^2
plt.plot(z*1000, T, color='blue', label="1.1 s")

t = 2.1                       # s
T = medium.instantaneous(z, t) * 1e5  # 1 J/mm^2
plt.plot(z*1000, T, color='red', label="2.1 s")

t = 3.1                       # s
T = medium.instantaneous(z, t) * 1e5  # 1 J/mm^2
plt.plot(z*1000, T, color='green', label="3.1 s")

t = 5.1                       # s
T = medium.instantaneous(z, t) * 1e5  # 1 J/mm^2
plt.plot(z*1000, T, color='green', label="5.1 s")

plt.xlabel("Depth (mm)")
plt.ylabel("Temperature Increase (°C)")
plt.title("Three 0.1 J/mm² exposures at 1, 2, 3 seconds")
plt.legend()
plt.show()

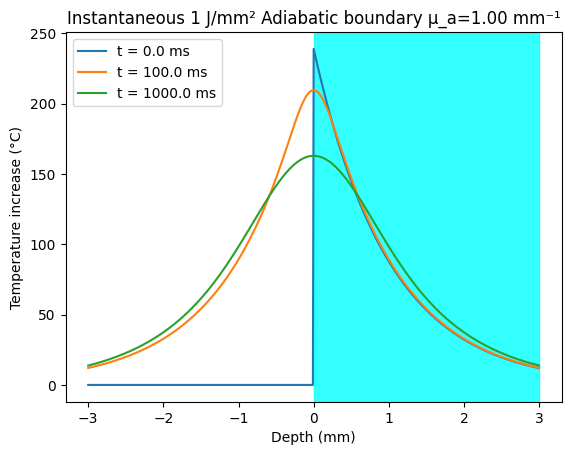

Adiabatic surface condition

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z = np.linspace(-0.003,0.003,601)

t = 0
T = medium.instantaneous(z,0) * 1e6
plt.plot(z*1000, T, label='t = %.1f ms' % (t*1000))

t = 0.1
T = medium.instantaneous(z,t) * 1e6
plt.plot(z*1000, T, label='t = %.1f ms' % (t*1000))

t = 1
T = medium.instantaneous(z,t) * 1e6
plt.plot(z*1000, T, label='t = %.1f ms' % (t*1000))

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1 J/mm² Adiabatic boundary µ_a=%.2f mm⁻¹" % (mu_a/1000))
plt.axvspan(0,z[-1]*1000,color='cyan',alpha=0.8)
plt.legend()
plt.show()

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='infinite')

print("No Boundary")
print("     z      t      T")
z, t = 0, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0, 0.0001
print('%.5f %.4f  %.2f surface immediately drops by 50%%' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0.0001
print('%.5f %.4f  %.2f internal temp does not change so quickly' %(z, t, medium.instantaneous(z,t) * 1e6))

print("\nAdiabatic Boundary")
print("     z      t      T")
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z, t = 0, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0, 0.0001
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0.0001
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))

print("\nZero Boundary")
print("     z      t      T")
medium = grheat.Absorber(mu_a, boundary='zero')
z, t = 0, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0, 0.0001
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))
z, t = 0.00001, 0.0001
print('%.5f %.4f  %.2f' %(z, t, medium.instantaneous(z,t) * 1e6))

No Boundary
     z      t      T
0.00000 0.0000  239.01
0.00000 0.0001  118.99 surface immediately drops by 50%
0.00001 0.0000  236.63
0.00001 0.0001  228.99 internal temp does not change so quickly

Adiabatic Boundary
     z      t      T
0.00000 0.0000  239.01
0.00000 0.0001  237.98
0.00001 0.0000  236.63
0.00001 0.0001  236.60

Zero Boundary
     z      t      T
0.00000 0.0000  239.01
0.00000 0.0001  0.00
0.00001 0.0000  236.63
0.00001 0.0001  221.37

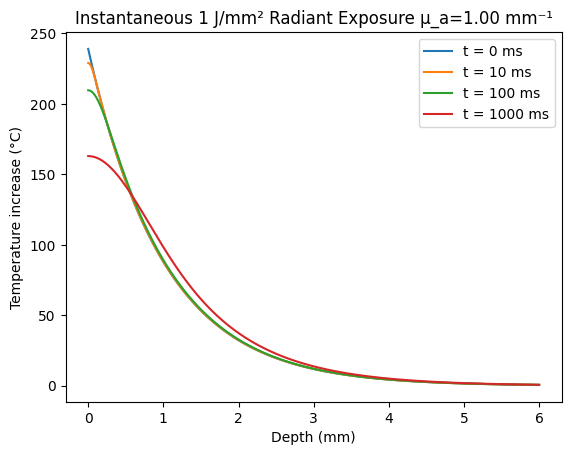

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z = np.linspace(0,0.006,401)

T = medium.instantaneous(z,0) * 1e6
plt.plot(z*1000, T, label='t = 0 ms')

T = medium.instantaneous(z,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.instantaneous(z,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.instantaneous(z,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Instantaneous 1 J/mm² Radiant Exposure µ_a=%.2f mm⁻¹" % (mu_a/1000))
plt.legend()
plt.show()

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z = np.linspace(0,0.007,401)
dz = z[1]-z[0]

print('Adiabatic surface boundary condition, instantaneous pulse')
print('time   total')
t = 0
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.01
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.1
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 1
T = medium.instantaneous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

Adiabatic surface boundary condition, instantaneous pulse
time   total
0.0000 1.0079
0.0100 1.0075
0.1000 1.0068
1.0000 1.0049

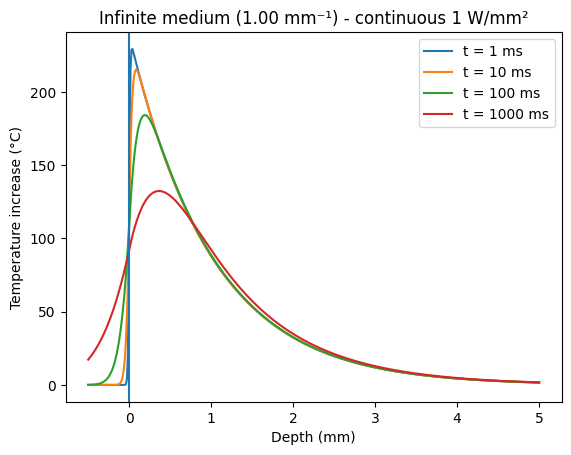

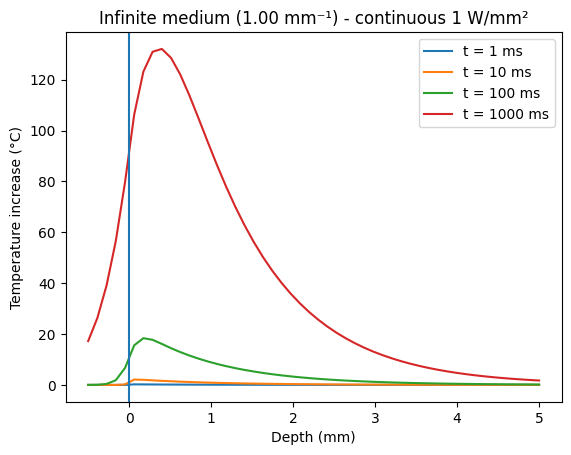

Continuous heating

Infinite medium, but heating z>0

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)

t=0.0
z = np.linspace(-0.0005,0.005)

T = medium.continuous(z,0.001) * 1e6
plt.plot(z*1000, T, label='t = 1 ms')

T = medium.continuous(z,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.continuous(z,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.continuous(z,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Infinite medium (%.2f mm⁻¹) - continuous 1 W/mm²" % (mu_a/1000))
plt.legend()
plt.axvline(0)
plt.show()

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)
z = np.linspace(-0.0015,0.006,401)
dz = z[1]-z[0]

print('No surface boundary condition, instantaneous pulse')
print('time   total')
t = 0
T = medium.continuous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.01
T = medium.continuous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.1
T = medium.continuous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 1
T = medium.continuous(z,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

No surface boundary condition, instantaneous pulse
time   total
0.0000 0.0000
0.0100 0.0100
0.1000 0.0998
1.0000 0.9973

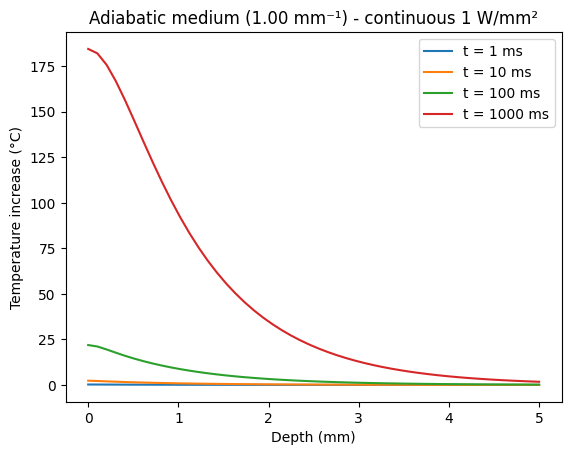

Adiabatic surface condition

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')

t=0.0
z = np.linspace(0.000,0.005)

T = medium.continuous(z,0.001) * 1e6
plt.plot(z*1000, T, label='t = 1 ms')

T = medium.continuous(z,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.continuous(z,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.continuous(z,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Adiabatic medium (%.2f mm⁻¹) - continuous 1 W/mm²" % (mu_a/1000))
plt.legend()
plt.show()

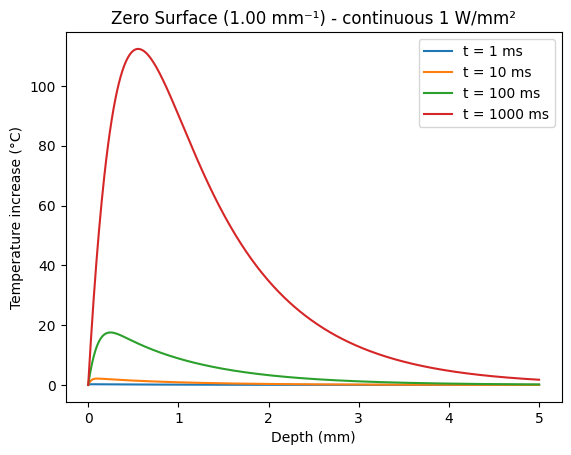

Zero surface condition

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='zero')

t=0.0
z = np.linspace(0.000,0.005,501)

T = medium.continuous(z,0.001) * 1e6
plt.plot(z*1000, T, label='t = 1 ms')

T = medium.continuous(z,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.continuous(z,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.continuous(z,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Zero Surface (%.2f mm⁻¹) - continuous 1 W/mm²" % (mu_a/1000))
plt.legend()
plt.show()

Pulsed heating

Infinite medium, but heating z>0

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)

t=0.0
z = np.linspace(-0.0005,0.005, 501)

T = medium.pulsed(z,0.001, 0.001) * 1e6
plt.plot(z*1000, T, label='t = 1 ms')

T = medium.pulsed(z,0.01,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.pulsed(z,0.1,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.pulsed(z,1,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Infinite medium (%.2f mm⁻¹) - continuous 1 W/mm²" % (mu_a/1000))
plt.legend()
plt.axvline(0)
plt.show()

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)
z = np.linspace(-0.0015,0.006,401)
dz = z[1]-z[0]

print('No surface boundary condition, pulsed')
print('time   total')
t = 0.001
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.01
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.1
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 1
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

No surface boundary condition, pulsed
time   total
0.0010 0.9975
0.0100 0.9975
0.1000 0.9975
1.0000 0.9973

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a)
z = np.linspace(-0.003,0.008,401)
dz = z[1]-z[0]
t_pulse = 0.1

print('No surface boundary condition, pulsed')
print('time   total')
t = 0.5 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 2 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 10 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

No surface boundary condition, pulsed
time   total
0.0500 0.4998
0.1000 0.9997
0.2000 0.9997
1.0000 0.9996

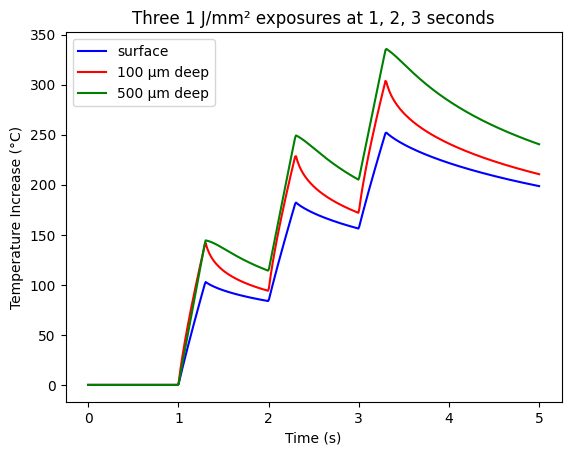

mua = 1 * 1000               # 1/m  (1mm⁻¹ = 1000m⁻¹)
tp = np.array([1,2,3], dtype=float)

medium = grheat.Absorber(mua, tp=tp)

t = np.linspace(0, 5, 500)   # seconds
t_pulse = 0.3


z = 0                        # meters
T = medium.pulsed(z, t, t_pulse) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='blue', label="surface")

z = 0.0001
T = medium.pulsed(z, t, t_pulse) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='red', label="100 µm deep")

z = 0.0005
T = medium.pulsed(z, t, t_pulse) * 1e6  # 1 J/mm^2
plt.plot(t, T, color='green', label="500 µm deep")

plt.xlabel("Time (s)")
plt.ylabel("Temperature Increase (°C)")
plt.title("Three 1 J/mm² exposures at 1, 2, 3 seconds")
plt.legend()
plt.show()

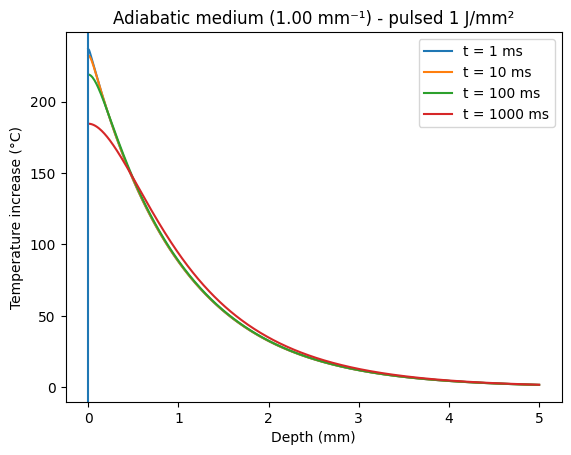

Adiabatic boundary condition

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')

t=0.0
z = np.linspace(0,0.005, 501)

T = medium.pulsed(z,0.001, 0.001) * 1e6
plt.plot(z*1000, T, label='t = 1 ms')

T = medium.pulsed(z,0.01,0.01) * 1e6
plt.plot(z*1000, T, label='t = 10 ms')

T = medium.pulsed(z,0.1,0.1) * 1e6
plt.plot(z*1000, T, label='t = 100 ms')

T = medium.pulsed(z,1,1) * 1e6
plt.plot(z*1000, T, label='t = 1000 ms')

plt.xlabel("Depth (mm)")
plt.ylabel('Temperature increase (°C)')
plt.title("Adiabatic medium (%.2f mm⁻¹) - pulsed 1 J/mm²" % (mu_a/1000))
plt.legend()
plt.axvline(0)
plt.show()

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z = np.linspace(0,0.006,401)
dz = z[1]-z[0]

print('Adiabatic surface boundary condition, pulsed')
print('time   total')
t = 0.001
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.01
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 0.1
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 1
T = medium.pulsed(z,t,t) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

Adiabatic surface boundary condition, pulsed
time   total
0.0010 1.0050
0.0100 1.0048
0.1000 1.0044
1.0000 1.0031

mu_a = 1 * 1000  # 1/m
medium = grheat.Absorber(mu_a, boundary='adiabatic')
z = np.linspace(0,0.008,401)
dz = z[1]-z[0]
t_pulse = 0.1

print('No surface boundary condition, pulsed')
print('time   total')
t = 0.5 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 2 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

t = 10 * t_pulse
T = medium.pulsed(z,t,t_pulse) * 1e6
print("%.4f %.4f" % (t, T.sum()*dz*joules_per_calorie))

No surface boundary condition, pulsed
time   total
0.0500 0.5045
0.1000 1.0088
0.2000 1.0082
1.0000 1.0065
